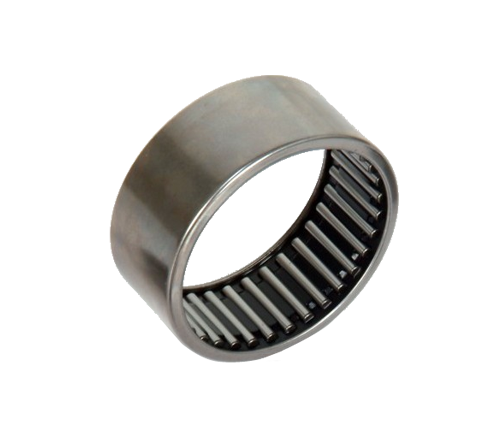

BK Series
Dimension and Parameters
Bearing Designation
Current Code :BK3516
Original Code :45941/35
Shaft Diameter（mm） :35
Weight(Kg) :43.8

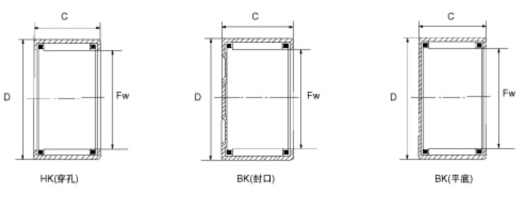

Boundary Dimensions(mm)
Fw :35
D :42
C :16
Basic Load Rating(N)
Dynamic :15700
Static :27500
Limiting Speed(rpm)
Oil :7100
