381992/HCC9

Part Number:
d:
D:
B:

Four Row Series

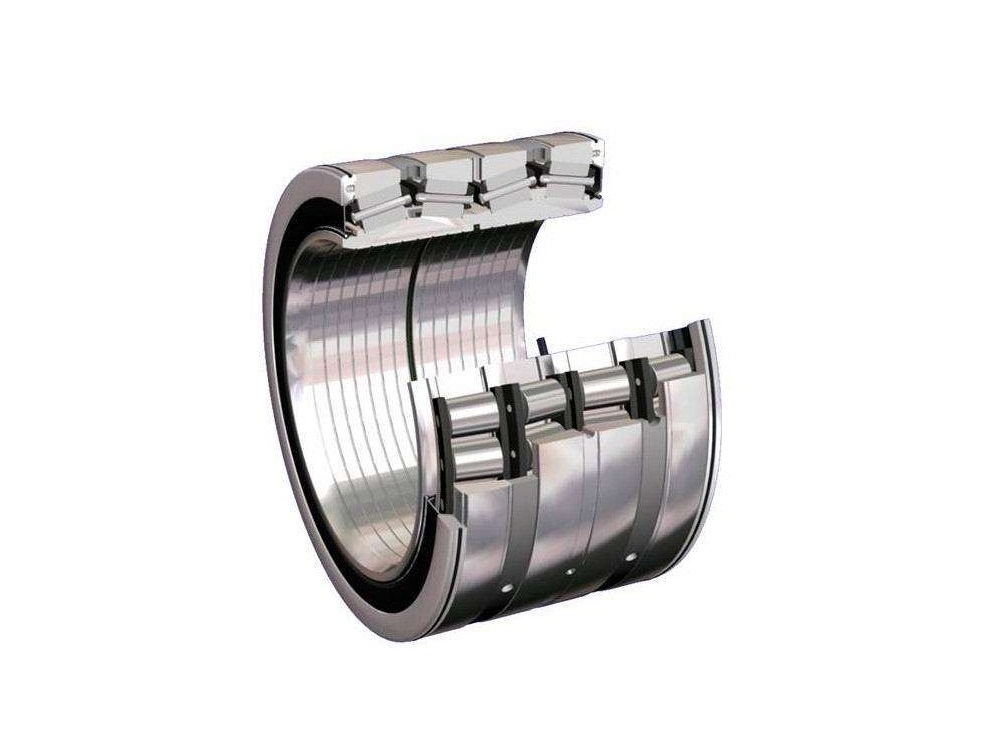

image/1543993964.jpg
Four Row Series

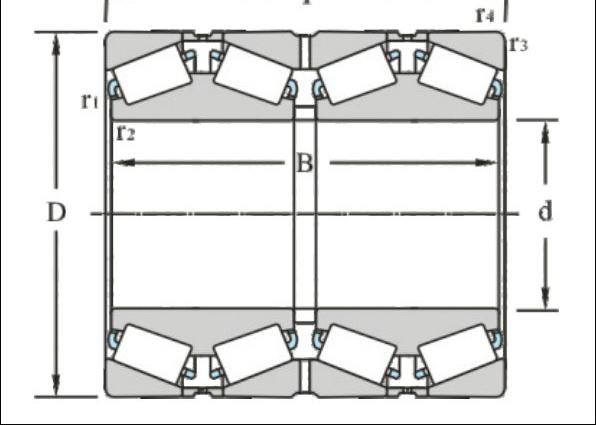

Dimension and Parameters

Bearing No. :381992/HCC9
Boundary dimensions(mm)
d :460
D :620
B :310
T :310
r min :5
r1 min :4
Basic load ratings(kN)
Dynamic(Cr) :5600
Static(Cor) :3450
Mass
Kg :260
