NA49 Series

NA49 Series

Object

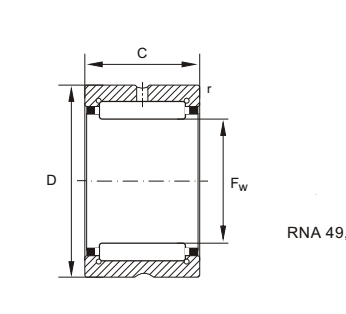

Drawing

NA49 Series

PDF

Contacts :

Country:

Address :

Company name :

E-mail :

Quantity :

Remark :

Verification:

click to change

select	Inquiry	Bearing No.	Boundary dimensions（mm）				Basic load ratings(kN)		Limiting speed(rpm )	Mass
select	Inquiry	Bearing No.	d	Fw	D	C	Dynamic(Cr)	Static(Cor)	Oil	Kg
		NA4900	10	14	22	13	8006	9000	23700	21
		NA4901	12	16	24	13	5047	6352	20000	25.1
		NA4902	15	20	28	13	6447	9053	18800	32
		NA4903	17	22	30	13	7010	10010	17000	32.8
		NA4904	20	25	37	17	11912	16594	16200	70.2
		NA49/22	22	28	39	17	12996	19175	14360	76
		NA4905	25	30	42	17	13452	20475	13832	76
		NA49/28	28	32	45	17	13900	20100	13832	90.7
		NA49/32	32	40	52	20	19000	32600	11134	150
		NA4907	35	42	55	20	19800	41500	11134	151
		NA4908	40	48	62	22	31036	63873	8567	123
		NA4909	45	50	68	22	37000	96500	8052	260
		NA4910	50	58	72	22	41000	72000	7526	264
		NA4911	55	63	80	25	50600	96580	7156	386
		NA4912	60	68	85	25	52800	110500	6022	412
		NA4913	65	72	90	25	57500	110500	6022	435
		NA4914	70	80	100	30	79000	154000	5111	712
		NA4915	75	85	105	30	82000	158000	5111	765
		NA4916	80	90	110	30	81000	170500	5111	870
		NA4917	85	100	120	35	111000	237000	4600	1250
		NA4918	90	105	125	35	114000	250000	4400	1312
		NA4919	95	110	130	35	116000	260000	4200	1371
		NA4920	100	115	140	40	120000	2740000	4000	1900
		NA4922	110	125	150	40	132000	290000	3700	2070
		NA4924	120	135	165	45	181000	890000	3400	2860
		NA4926	130	150	180	50	223000	470000	3100	3900
		NA4928	140	160	190	50	209000	500000	2900	4150
