NK Series
Dimension and Parameters
Bearing Designation
Current Code :NK100/36
Original Code :
Shaft Diameter（mm） :95
Weight(Kg) :

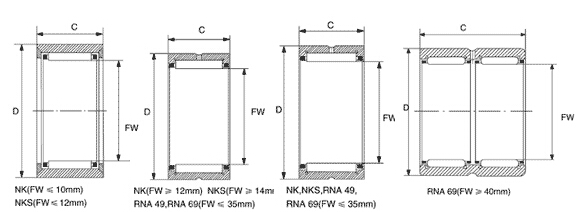

Boundary Dimensions(mm)
Fw :100
D :120
C :36
Basic Load Rating(N)
Dynamic :111000
Static :237000
Limiting Speed(rpm)
Oil :4600
